Fourstroke 01 FRS | BMC | frames | Mountain, Mountain | Cross-Country

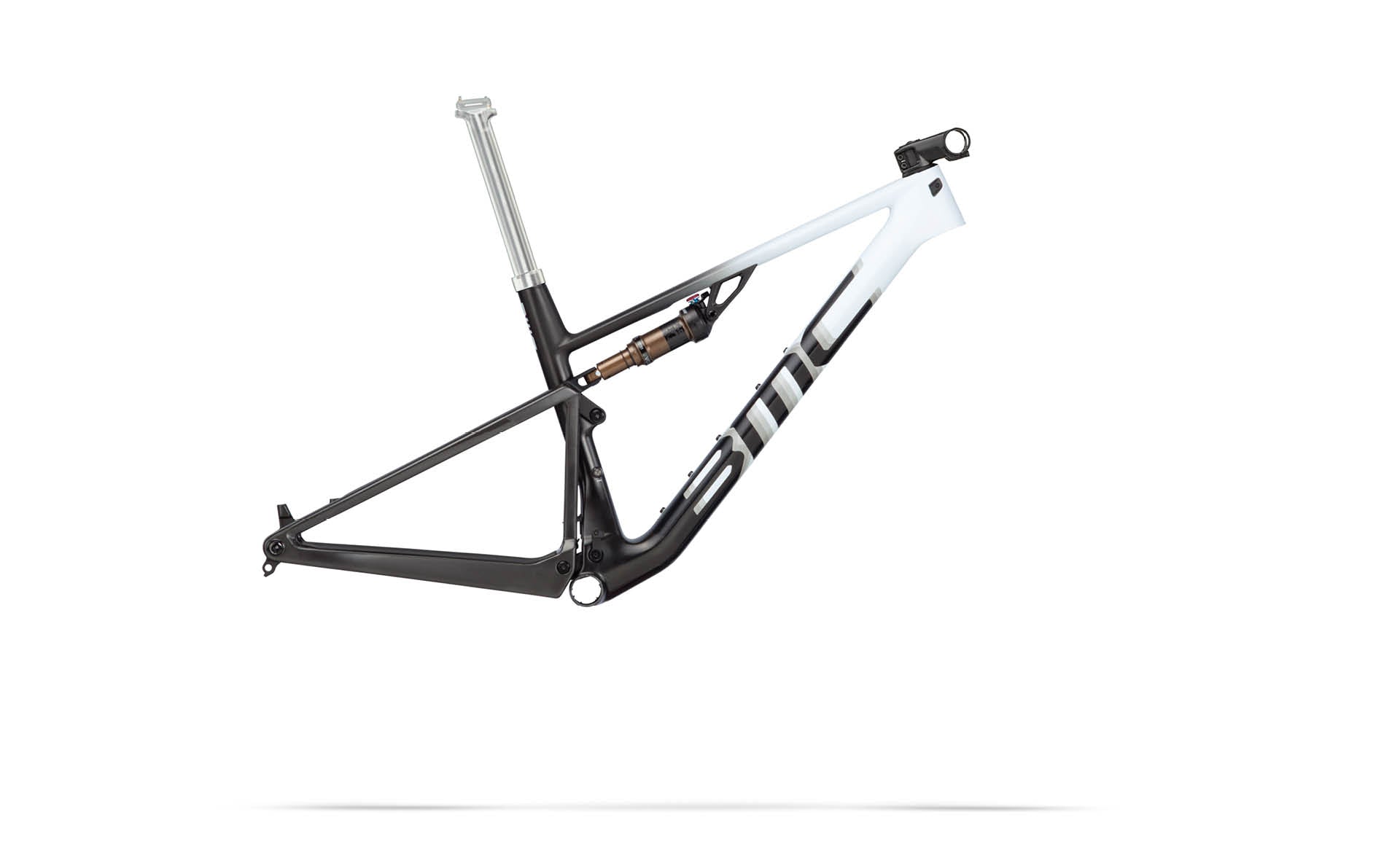

Fourstroke 01 FRS

COOL WHITE / BLACK

Premium Carbon Frame
Fox Float DPS EVOL LV Factory Shock
BMC Autodrop Integrated Dropper Seatpost

Regular price€5.499,00
/
Tax included.

SKU: 30005822
Size
  • Low stock - 4 items left
  • Inventory on the way

Fourstroke 01 FRS

Parts & Accessories

  • Shipped to your local bike shop
Fourstroke 01 is an XCO performance bike that exceeds the demands of the world’s top racers. On a mission to set the pace with our unique Autodrop technology and unrivalled APS dual-link suspension with 100mm of front and rear travel, it bests the competition in a Premium Carbon frame. This revolutionized racing machine arrives with integrated protection and is designed around the progressive BWC geometry, now accommodating two water bottles in the front triangle for long-distance missions. Fourstroke 01 FRS is your go-to XCO frameset and arrives with Fox Float DPS EVOL LV Factory shock and the BMC Autodrop integrated dropper seatpost.

Technology

Technical Overview

Frameset

Frame:
Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:

Suspension

Rear Suspension:
Fox Float DPS EVOL LV Factory | Kashima Coating

Cockpit

Stem:
BMC MSM 01

Handlebar:

Grips:

Seat

Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop

Saddle:

Additional Information

Tire Clearance:
62mm

Weight without Pedals:

ASTM Classification:
Level 3

System Weight Limit:
110kg

Size S M L XL
Rider Height <172 172-182 180-188 >188
Reach 437 457 477 500
Stack 584 592 600 615
Bar Rise 4 4 4 4
Bar Sweep 8 8 8 8
Bar Width 760 760 760 760
BB Drop 53 53 53 53
Crank Length 170 170 175 175
Fork Length 513 513 513 513
Fork Rake 44 44 44 44
Front Center 714 738 762 791
Head Tube 83.84 93.5 101.25 117.58
Head Tube Angle 66.5 66.5 66.5 66.5
Rear Center 432 432 432 432
Seat Angle 76.7 76.7 76.7 76.7
Seat Tube 420 440 470 510
Seatpost Drop 80 80 80 80
Standover Height 725 725 725 725
Stem Angle -5 -5 -5 -5
Stem Length 50 60 60 70
Top Tube 574 597 621.2 649.23
Trail 113 113 113 113
Wheelbase 1139 1171 1188 1218
