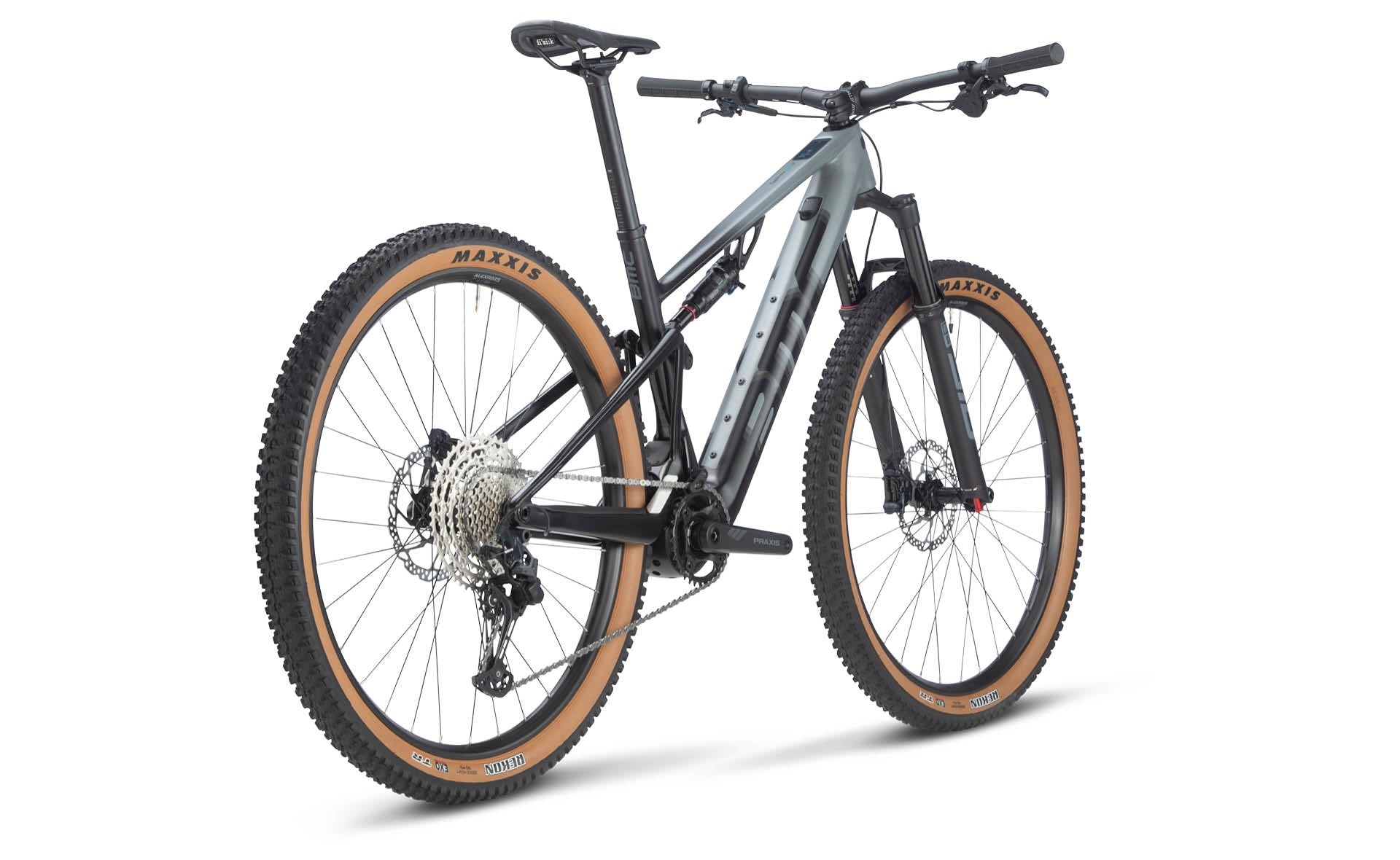

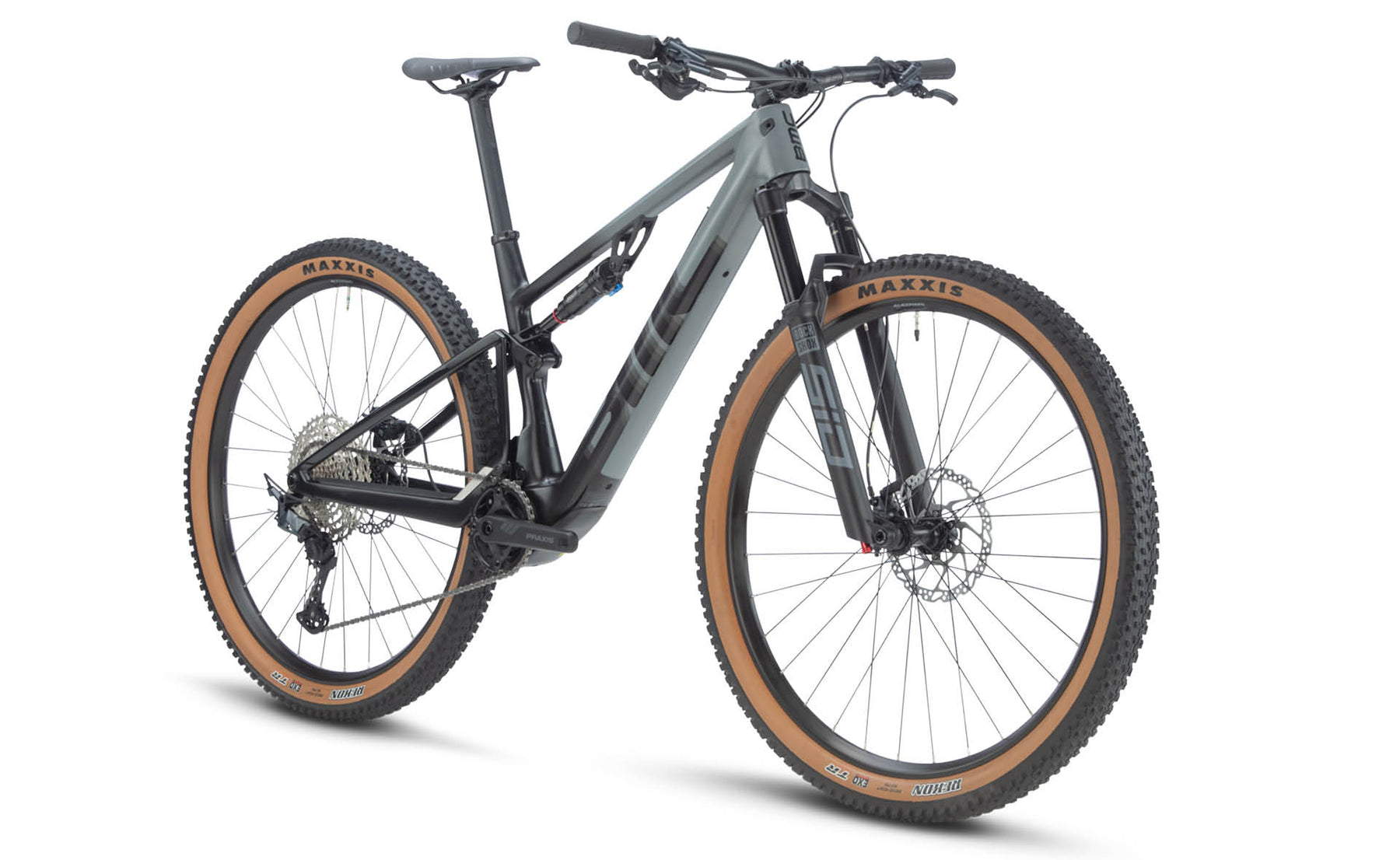

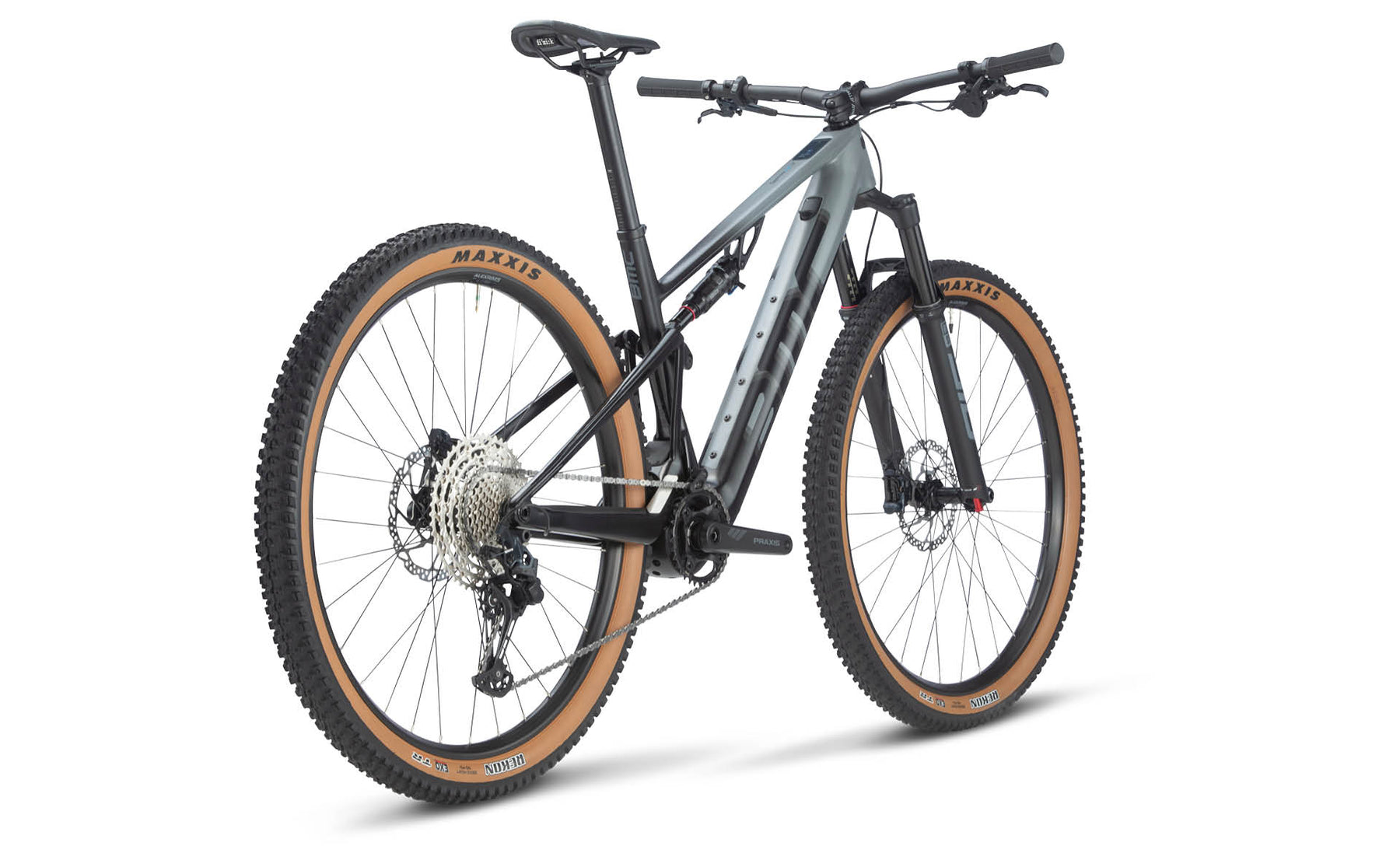

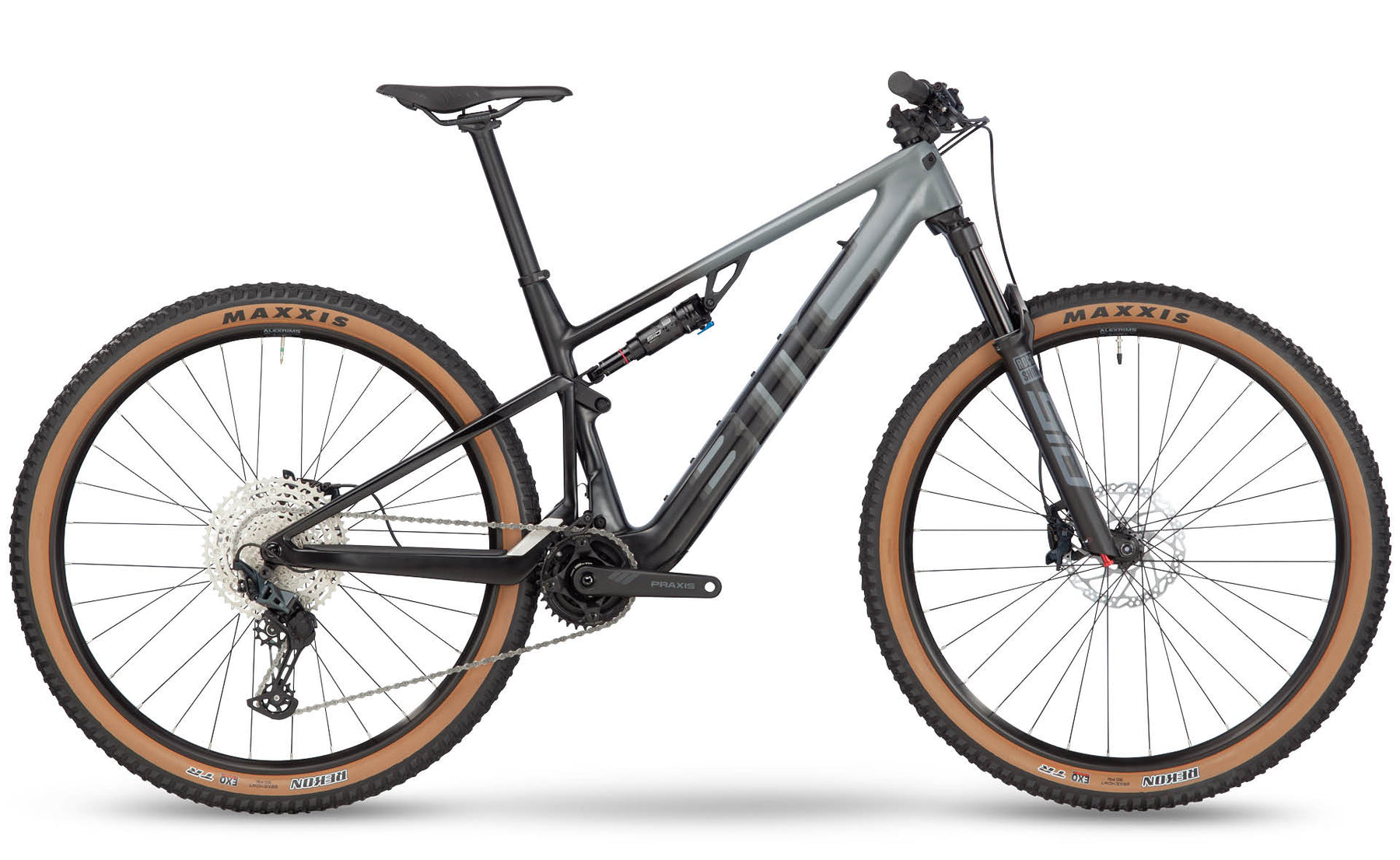

Fourstroke AMP LT THREE

IRON GREY / BLACK

TQ-HPR50 Drive Unit
Shimano SLX 12 spd Drivetrain
RockShox SID RL Fork / RockShox SIDLuxe Select+ Shock

Regular price€6.899,00
/
Tax included.

SKU: 30002827
Size

Fourstroke AMP LT THREE

Parts & Accessories

  • Shipped to your local bike shop
Amplify your trail-game with the all-new Fourstroke AMP LT built to perform on every terrain. This advanced XC performance machine delivers a progressive riding feel with 120 mm of revolutionized APS dual-link suspension travel. Hidden trail-racing power comes curtesy of the trailblazing TQ-HPR50 drive system for nonstop uphill and downhill speed to make sure nothing stands in your way. The full-carbon frame includes our most progressive Big Wheel Concept Race geometry to accommodate two water bottles, an integrated fork stopper and frame protection. Fourstroke AMP LT THREE boasts a Shimano SLX 12 spd drivetrain, RockShox SID RL fork and RockShox SIDLuxe Select+ shock, Alex MD30 wheels with 30mm inner width, BMC MSP03 seatpost and the powerful TQ-HPR50 drive unit.

Technology

Technical Overview

Frameset

Frame:
Fourstroke LT AMP Carbon | APS Suspension System | 120mm Travel | Integrated Battery | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Suspension

Front Suspension:
RockShox SID 3P

Rear Suspension:
RockShox SIDLUXE Select+

E-System

Drive Unit:
TQ-HPR50 Drive Unit

Battery Pack:
TQ Battery | 360 Wh

Display:
TQ VO2 Display | 2" O-LED | Bluetooth / ANT+

Drive Unit Control:
TQ V01 Remote

Charger:
TQ HPR-50 4A Charger

Cockpit

Stem:
Truvativ Atmos 6K

Handlebar:
BMC MRB 03 | 760mm

Seat

Seatpost:
BMC MSP 03 | 31.6mm | 0mm Offset

Saddle:
Fizik Antares R7

Drivetrain

Crankset:
Praxis eCrank

Chainrings:
34T

Cassette:
SHIMANO Deore (CS-M6100)

Cassette Size:
10-51T

Chain:
SHIMANO CN-M6100

Rear Derailleur:
SHIMANO SLX (RD-M7100)

Shifters:
SHIMANO SLX (SL-M7100) | Rapidfire Plus

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SHIMANO BL-MT501 Levers | BR-MT520 Calipers

Rotors:
SHIMANO SM-RT54

Rotor Size (F/R):
180 / 180mm

Wheels

Rims:
Alex MD30 | 30mm Inner Width

Hubs (F/R):
SHIMANO MT400 (F) | MT410 (R)

Tires:
Maxxis Rekon 2.4" | EXO TR

Additional Information

Tire Clearance:
60mm

ASTM Classification:
Level 3

System Weight Limit:
120kg

Size S M L XL
Rider Height <172 172-182 180-188 >188
Reach 437 457 476 496
Stack 594 605 615 627
Bar Rise 15 15 15 15
Bar Sweep 9 9 9 9
Bar Width 760 760 760 760
BB Drop 40 40 40 40
Crank Length 165 170 170 175
Fork Length 531 531 531 531
Fork Rake 44 44 44 44
Front Center 725 751 775 800
Head Tube 90 102 113 125
Head Tube Angle 66.5 66.5 66.5 66.5
Rear Center 435 435 435 435
Seat Angle 77 77 77 77
Seat Tube 420 430 470 490
Seatpost Length 350 400 400 400
Standover Height 730 730 730 730
Stem Angle 6 6 6 6
Stem Length 40 50 50 60
Top Tube 574 597 620 644
Trail 115 115 115 115
Wheelbase 1157 1178 1202 1227
