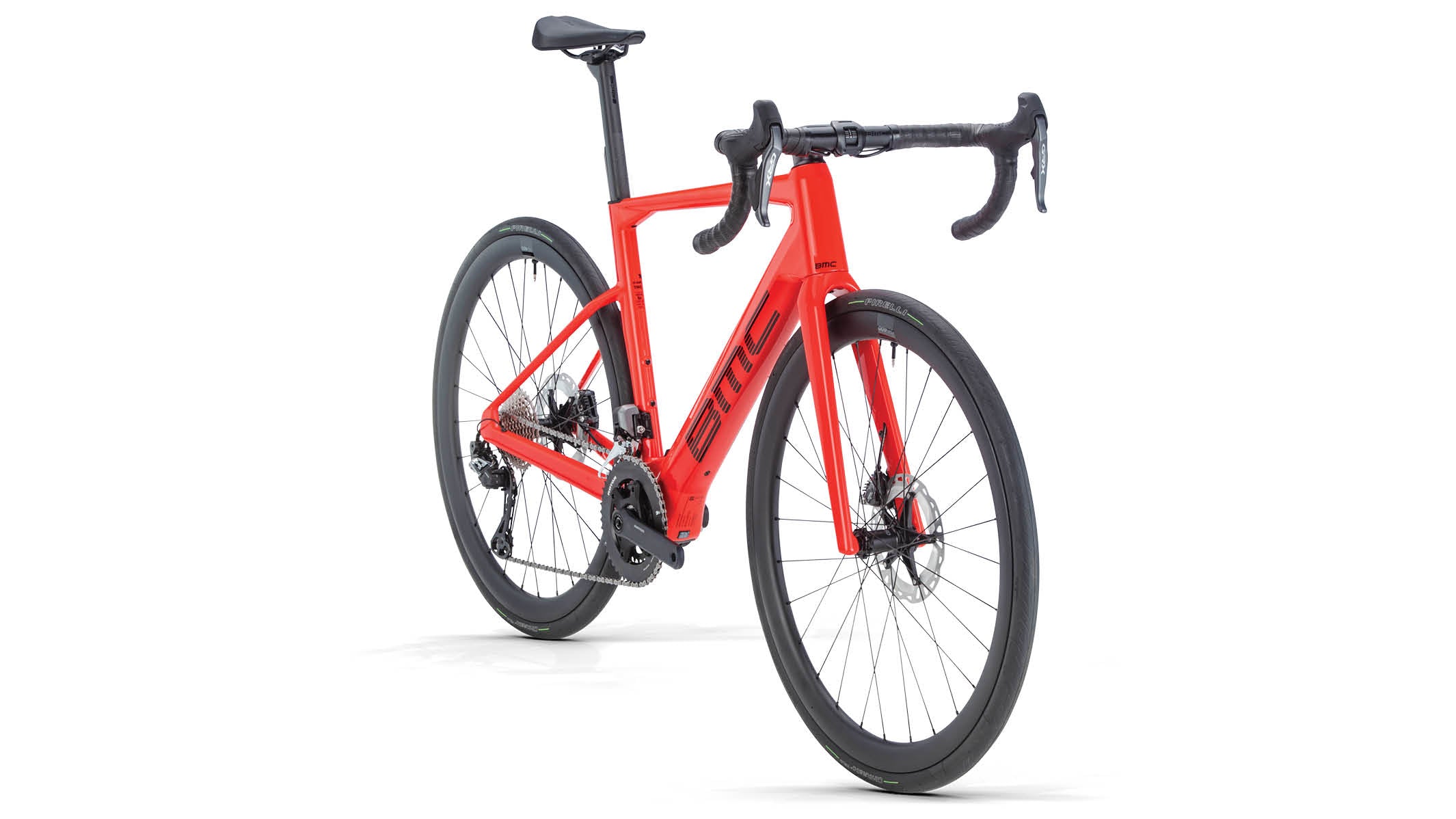

Roadmachine 01 AMP TWO

NEON RED / BLACK

TQ-HPR50 Drive Unit
SHIMANO GRX Di2
Pirelli Cinturato Velo TLR, 32 mm

Regular price€7.999,00
/
Tax included.

SKU: 30002737
Size

Roadmachine 01 AMP TWO

Parts & Accessories

  • Shipped to your local bike shop
Make every road your reality. For this interpretation of the Roadmachine, we refined the frame design, allying it with the super light and quiet TQ-HPR50 system that’s seamlessly integrated into the Premium Carbon frame. All of this is complemented by the smooth-shifting Shimano GRX Di2, our CRD-400 SL wheels and ultra-modern integration from front to back. This e-road bike isn’t just good on paper; the Roadmachine 01 AMP TWO brings its performance everywhere you go.

Technology

Technical Overview

Frameset

Frame:
Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Flat Mount Disc | 12 x 100mm Thru-Axle

Suspension

Front Suspension:
}

Rear Suspension:

Remote Lockout:

E-System

Drive Unit:
TQ-HPR50 Drive Unit

Battery Pack:
TQ Battery | 360 Wh

Display:
TQ Display | 2" O-LED | Bluetooth / ANT+

Drive Unit Control:

Charger:
TQ-HPR50 4A Charger

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Argo Tempo R5 | 150mm

Drivetrain

Crankset:
Rotor eVegast

Chainrings:
48-31T

Cassette:
SHIMANO (CS-HG800)

Cassette Size:
11-34T

Chain:
SHIMANO HG601

Front Derailleur:
SHIMANO GRX Di2 (FD-RX815)

Rear Derailleur:
SHIMANO GRX Di2 (RD-RX817)

Shifters:
SHIMANO GRX Di2 (ST-RX815)

Gears:
2 x 11

Brakes

Brake Levers / Calipers:
SHIMANO GRX (BR-RX810)

Rotors:
SHIMANO RT-MT800 / RT-EM810 | Centerlock

Rotor Size (F/R):
180 / 180mm

Wheels

Rims:
CRD-400 Carbon | Tubeless Ready | 40mm

Hubs (F/R):
CRD-400

Tires:
Pirelli Cinturato Velo TLR | 32mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

Integrated Rear Light

Additional Information

Tire Clearance:
38mm

Weight without Pedals:
12.8 Kg

ASTM Classification:
Level 2

System Weight Limit:
120kg

Size 47 51 54 56 58 61
Rider Height <162 162-174 172-180 178-186 184-192 >190
Reach 370 379 383 388 393 398
Stack 525 550 570 595 620 645
Bar Drop 125 125 125 125 125 125
Bar Reach 70 70 70 70 70 70
Bar Width 400 420 420 420 420 440
BB Drop 75 75 75 75 75 75
Crank Length 170 170 170 170 170 170
Fork Length 380 380 380 380 380 380
Fork Rake 50 50 45 45 45 45
Front Center 579 596 594 607 620 633
Head Tube 112 138 154 181 207 233
Head Tube Angle 71.4 71.4 72.2 72.2 72.2 72.2
Rear Center 420 420 420 420 420 420
Seat Angle 74.2 74.2 74.2 74.2 74.2 74.2
Seat Tube 420 460 500 525 545 575
Seatpost Length 230 280 280 280 280 330
Seatpost Offset 15 15 15 15 15 15
Standover Height 728 755 786 810 829 850
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Stem Length 90 90 100 110 110 110
Top Tube 519 535 544 556 568 581
Trail 63 63 63 63 63 63
Wheelbase 987 1005 1002 1015 1028 1041
