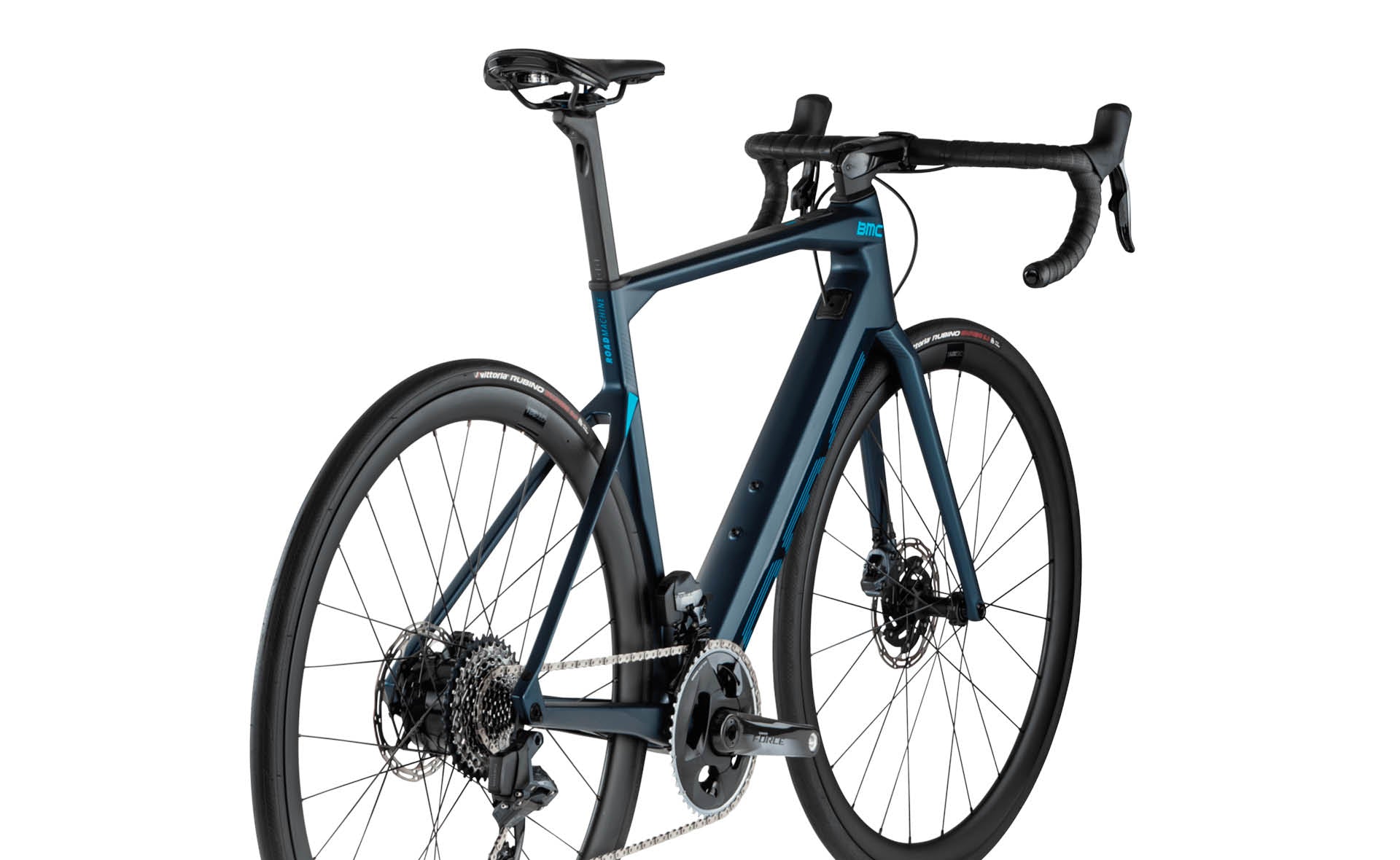

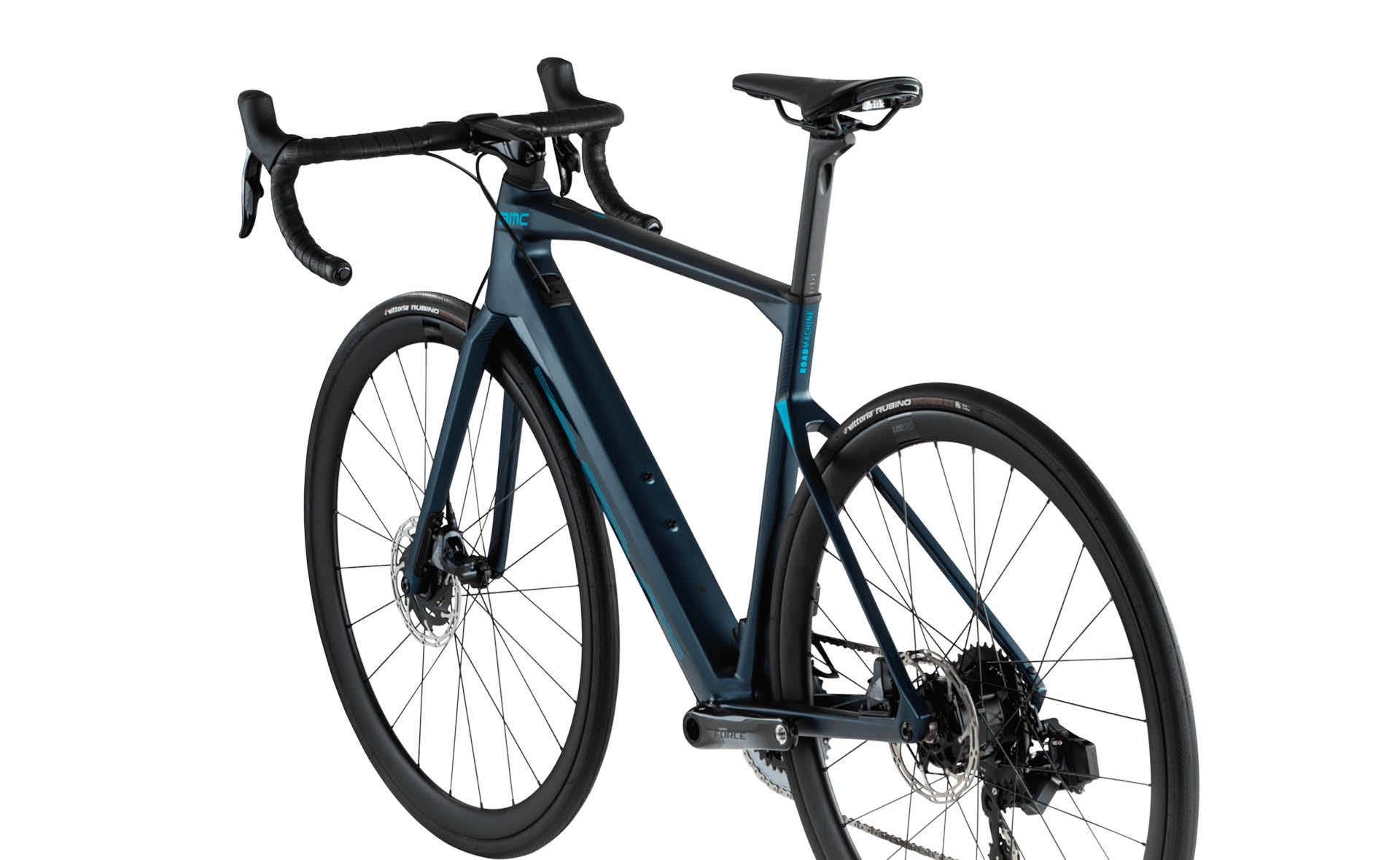

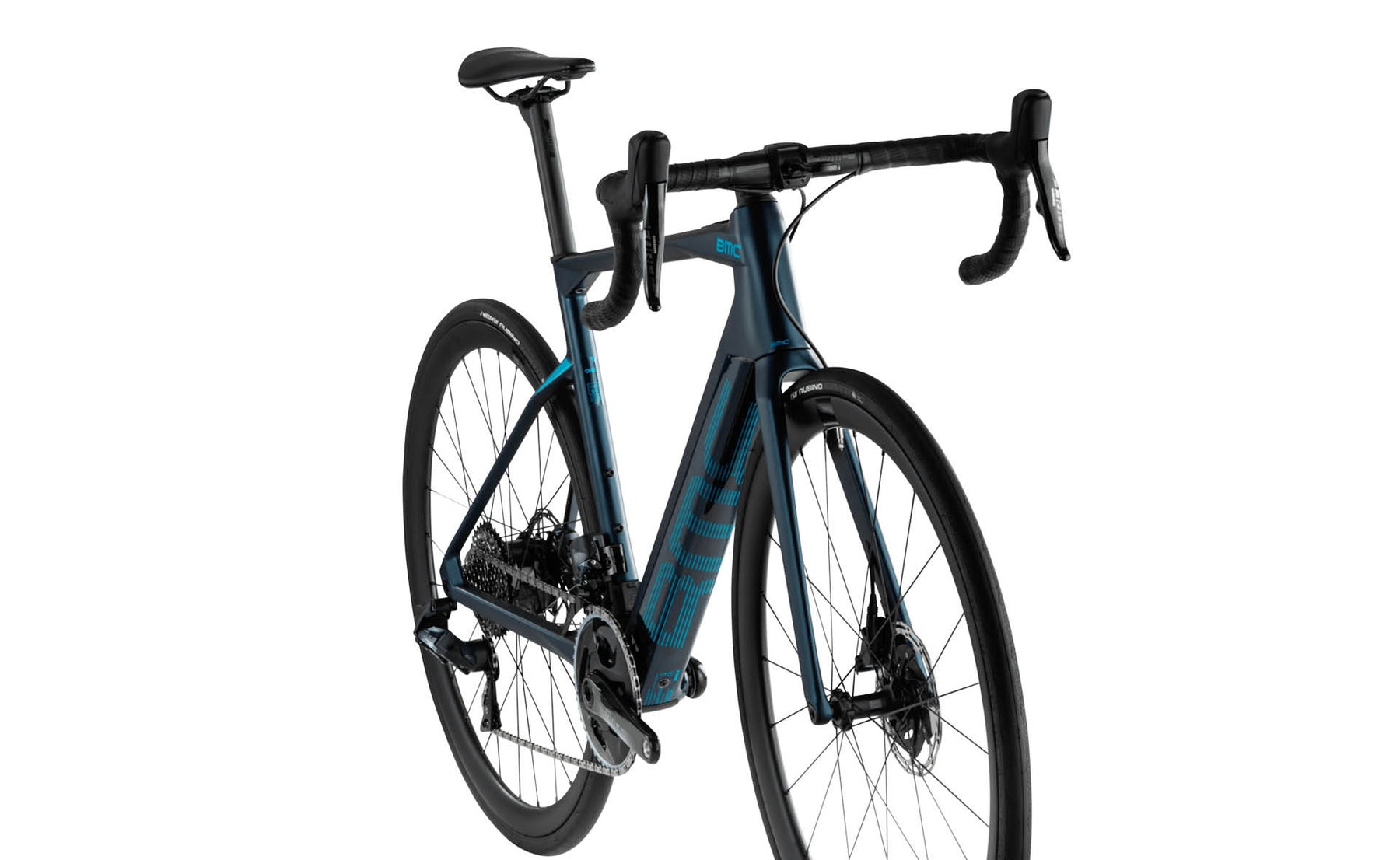

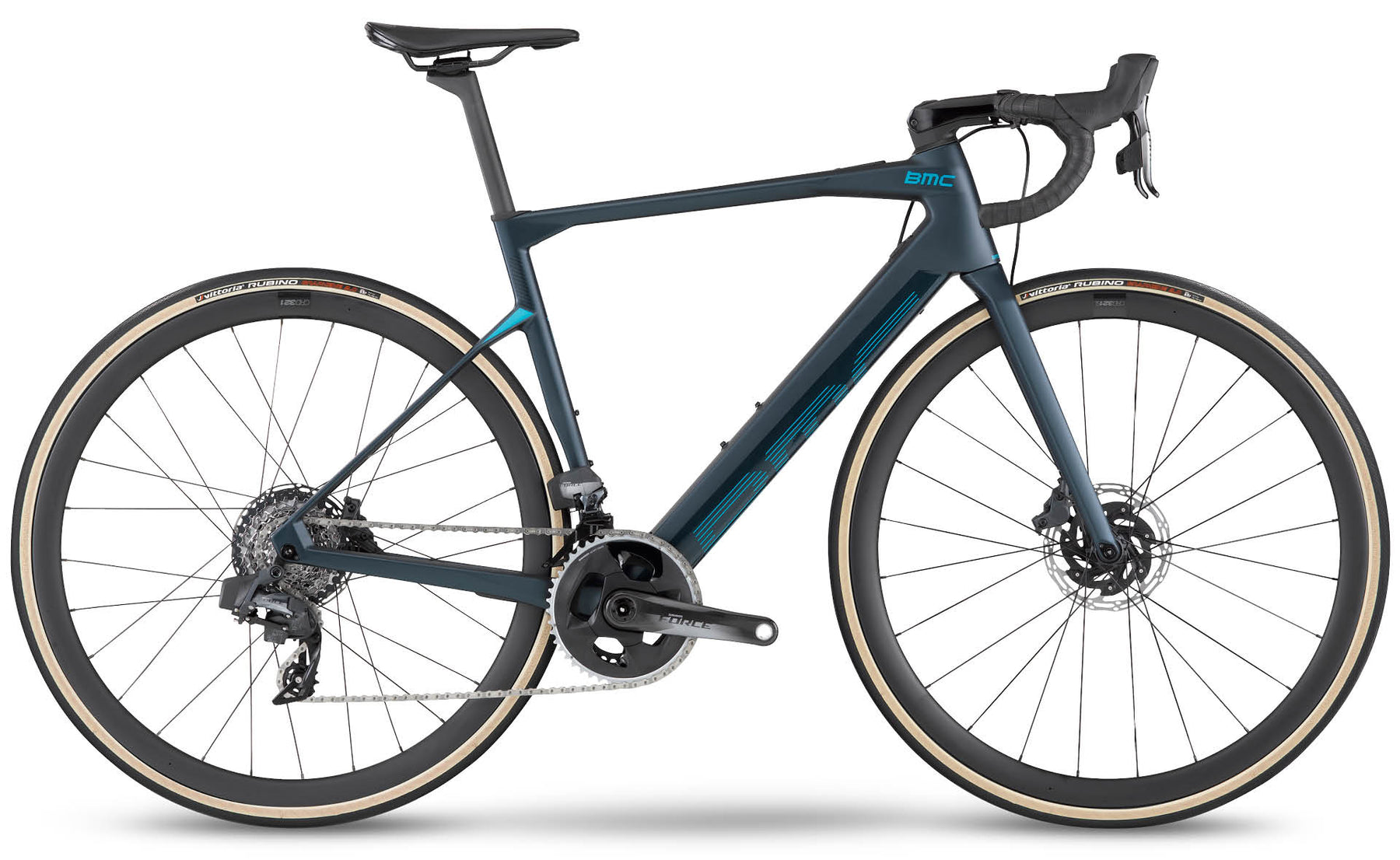

Roadmachine AMP ONE

PETROL / TURQUOISE

Mahle X20 Ultracompact Sport Hub Drive Unit
SRAM FORCE eTap AXS Drivetrain
CRD-321 Carbon Wheelset

Regular price€7.999,00
/
Tax included.

SKU: 30002783
Size

Roadmachine AMP ONE

Parts & Accessories

  • Shipped to your local bike shop
The Roadmachine AMP has hidden power thanks to Mahle's benchmark, ultra-compact hub drive unit, which has a leading power-to-weight ratio. While it looks, handles and performs like a Roadmachine, this e-road bike assists you through the tough parts so you can achieve more. There’s a Premium Carbon D-Shape seatpost and ICS1 stem for day-long comfort. It’s built to perform with SRAM’s Force eTap AXS 12-speed groupset, 35mm CRD-321 Carbon tubeless-ready wheels and 30mm tires.

Technology

Technical Overview

Frameset

Frame:
Roadmachine AMP Premium Carbon with Tuned Compliance Concept Endurance | Integrated removable Internal Battery | Internal Cable Routing | Integrated Seatpost Clamp | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Roadmachine AMP Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) 45mm offset (Size 54-61)

Suspension

Front Suspension:

Rear Suspension:

Remote Lockout:

E-System

Drive Unit:
Mahle X20

Battery Pack:
Mahle iX350 | Optional 172 Wh Range Extender | 350 Wh

Display:
Mahle Head Unit

Drive Unit Control:
Mahle Head Unit

Charger:
Mahle X20 Active Charger

Cockpit

Stem:
BMC ICS1 | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine AMP Premium Carbon D-Shaped Seatpost | 15mm Offset

Saddle:
Fizik Taiga

Brakes

Brake Levers / Calipers:
SRAM Force eTap AXS HRD

Rotors:
SRAM Centerline XR

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CRD-321 Carbon | Tubeless Ready | 35mm

Hubs (F/R):
CRD-321 | Ebikemotion

Tires:
Vittoria Rubino Pro | 30mm

Additional Information

Tire Clearance:
33mm

ASTM Classification:
Level 2

System Weight Limit:
120kg

Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 374 382 386 390 394 398
Stack 516 541 562 586 610 644
Bar Drop 125 125 125 125 125 125
Bar Reach 70 70 70 70 70 70
Bar Width 400 420 420 420 420 440
BB Drop 71 71 71 71 71 71
Crank Length 170 170 172.5 172.5 175 175
Fork Length 375 375 375 375 375 375
Fork Rake 50 50 45 45 45 45
Front Center 583 599 597 609 621 635
Head Tube 112 139 156 181 206 242
Head Tube Angle 71.2 71.2 72 72 72 72
Rear Center 410 410 410 410 410 410
Seat Angle 74.2 74.2 74.2 74.2 74.2 74.2
Seat Tube 420 457 500 522 539 573
Seatpost Length 330 380 380 380 380 430
Seatpost Offset 15 15 15 15 15 15
Standover Height 719 750 782 805 825 859
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Stem Length 90 90 100 110 110 120
Top Tube 522 532 546 556 568 583
Trail 63 63 63 63 63 63
Wheelbase 982 999 997 1008 1020 1035
