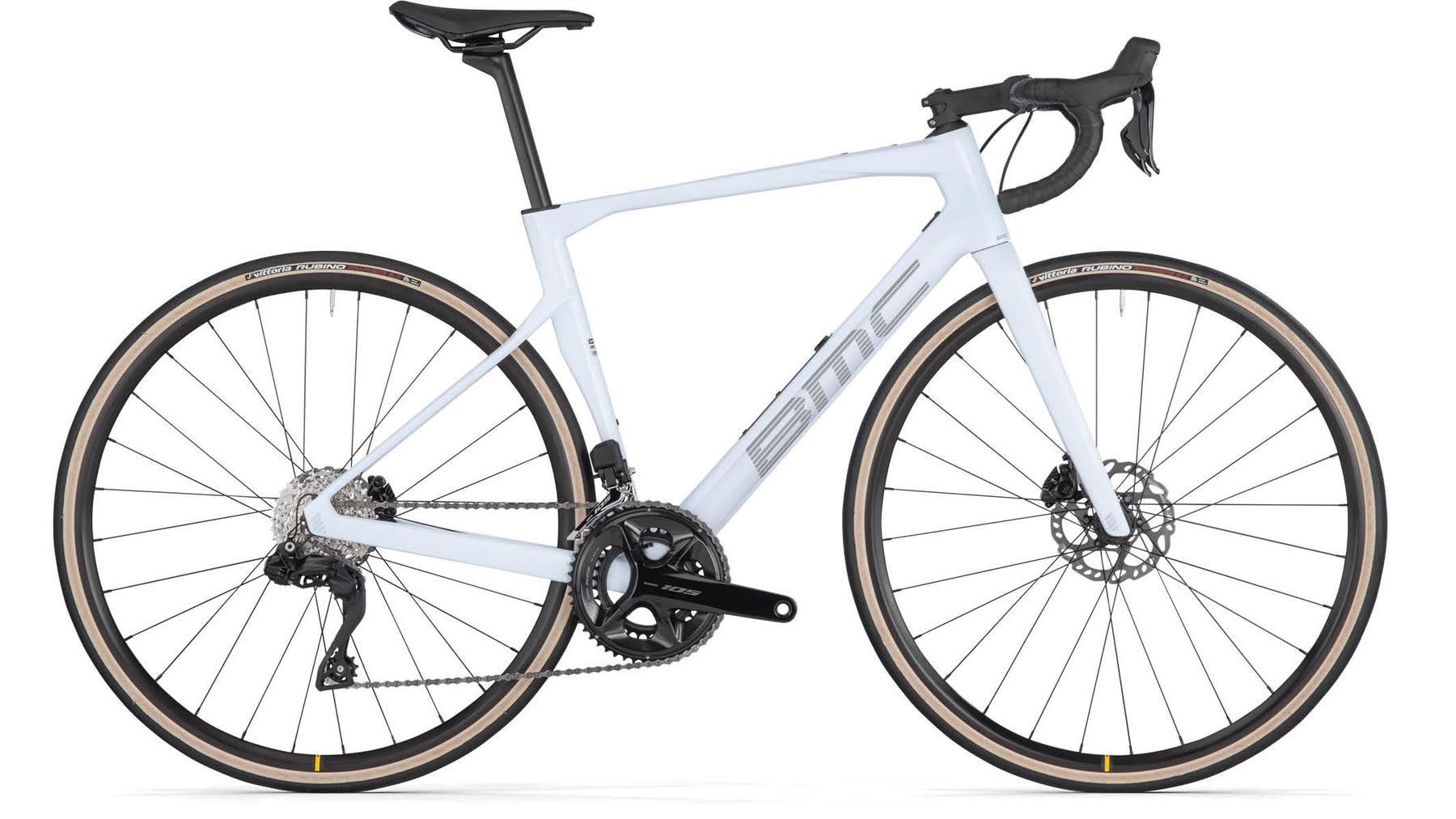

Roadmachine FOUR

COOL WHITE / GREY

Shimano 105 Di2 Drivetrain
Mavic Open Disc Wheelset
Carbon D-Shape Seatpost

Regular price€4.199,00
/
Tax included.

SKU: 30005254
Size

Roadmachine FOUR

Parts & Accessories

  • Shipped to your local bike shop
The Roadmachine brings big tire capabilities to its proven endurance platform to make every ride better. Built with Shimano’s 105 Di2 groupset and fitted with road-smoothing 30mm tires on a set of Mavic Open Disc wheels, the Roadmachine FOUR also features many of our innovative technologies, such as a Premium Carbon D-Shape seatpost to ensure next-level compliance and integrated downtube storage for peace of mind.

Technology

Technical Overview

Frameset

Frame:
Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle

Fork:
Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Suspension

Front Suspension:

Rear Suspension:

Remote Lockout:

Cockpit

Stem:
BMC RSM 01

Handlebar:
BMC RAB 03 | Ergo Top Shape | Compact Bend

Grips:

Seat

Seatpost:
Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Taiga or Selle Royal SRX

Drivetrain

Crankset:
SHIMANO 105 (FC-R7100)

Chainrings:
50-34T

Cassette:
SHIMANO 105 (CS-R7100)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M6100

Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)

Shifters:
SHIMANO 105 Di2 (ST-R7170)

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)

Rotors:
SHIMANO SM-RT70

Rotor Size (F/R):
160 / 140mm

Wheels

"

Rims:
Mavic Open Disc

Hubs (F/R):
CL-712 (F) | RXC-1425 (R) | Thru-Axle

Tires:
Vittoria Rubino IV G2.0 | Tube only | 30mm

Tubeless Information:
Tubetype Rims | Tubetype Tires

"

Additional Information

Tire Clearance:
40mm

Weight without Pedals:
8.6 Kg

ASTM Classification:
Level 2

System Weight Limit:
110kg

Size475154565861
SCOR Size
Rider Height<160158-174172-180178-186184-192>190
Reach370379383388393398
Stack525550570595620645
Bar Drop125125125127127125
Bar Reach707070707070
Bar Rise
Bar Sweep
Bar Width400420420420420440
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop757575757575
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170172.5172.5175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length379379379379379379
Fork Rake505045454545
Front Center579596594607620633
Front Center (SLACK)
Front Center (STEEP)
Head Tube112138154181207233
Head Tube Angle71.471.472.272.272.272.2
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center415415415415415415
Saddle Height Range
Seat Angle74.274.274.274.274.274.2
Seat Tube414461488508529550
Seatpost Drop
Seatpost Length330380380380380430
Seatpost Offset151515151515
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height726762786807828849
Stem Angle±8±8±8±8±8±8
Stem Length9090100110110120
Top Tube520537546559571581
Top Tube (SLACK)
Top Tube (STEEP)
Trail636363636363
Wheelbase9821000997101010231036
Wheelbase (SLACK)
Wheelbase (STEEP)
