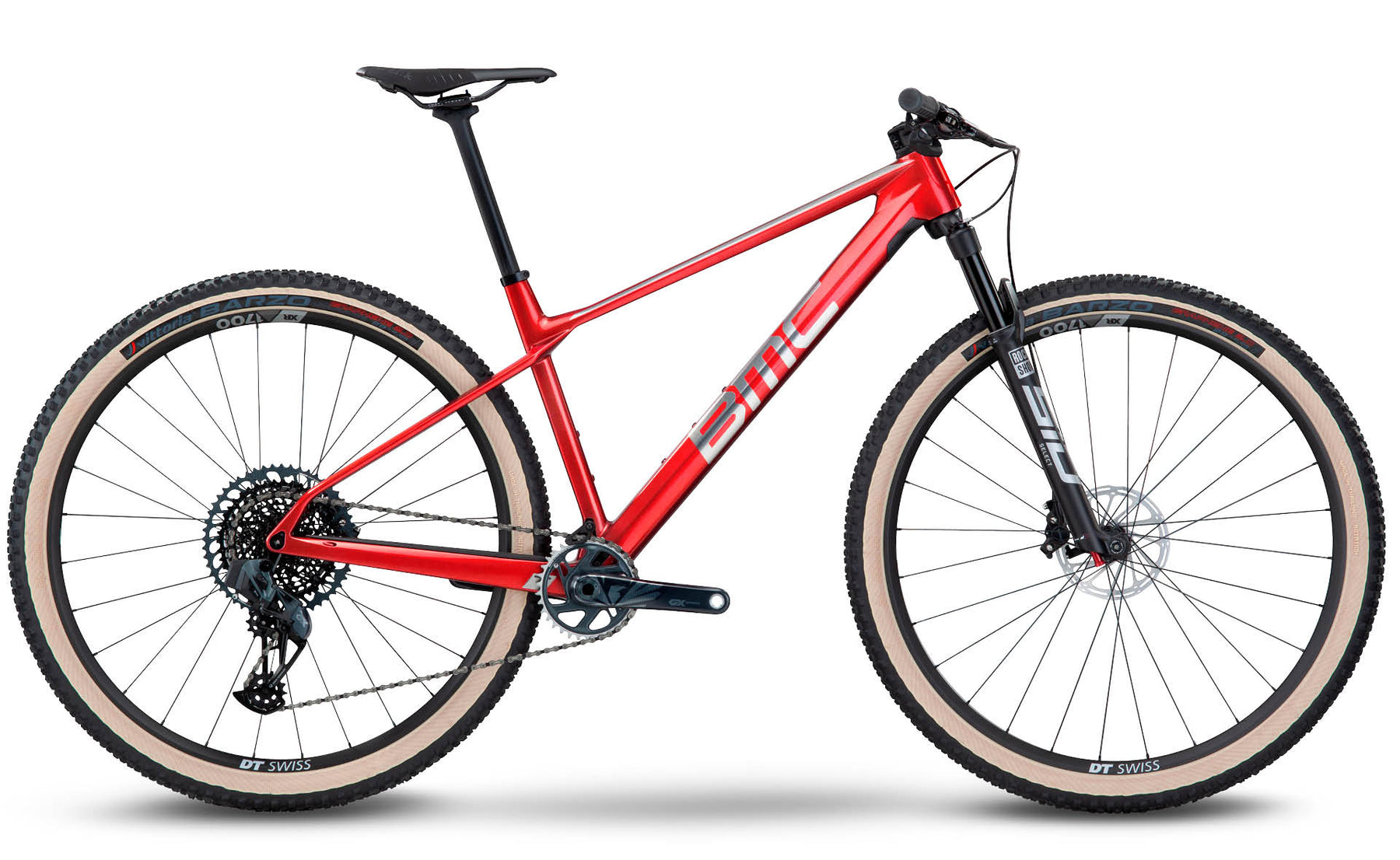

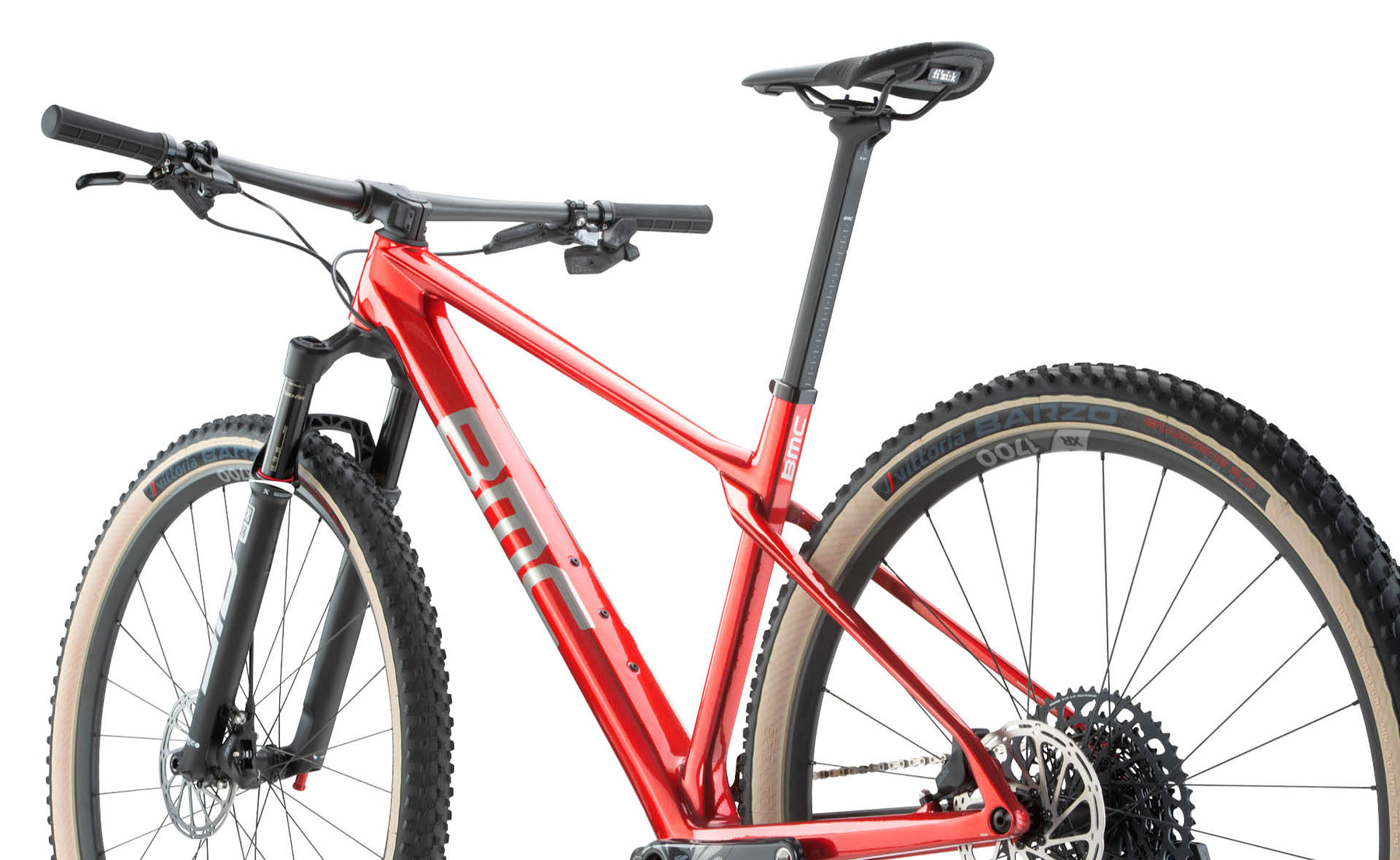

Twostroke 01 ONE

PRISMA RED / BRUSHED ALLOY

SRAM GX Eagle AXS Drivetrain
RockShox SID Select + Fork
DT Swiss X 1700 Wheelset

Regular price€5.699,00
/
Tax included.

SKU: 30002592
Size

Twostroke 01 ONE

Parts & Accessories

  • Shipped to your local bike shop
The Twostroke 01 is a progressive, compliant and confidence-inspiring fast hardtail. Its TCC-designed carbon frame has radical geometry for steep and loose terrain, wide tire clearance, integrated fork stopper and frame protection, plus internal cabling and provision for a dropper post. A RockShox SID Select+ fork, carbon bar, SRAM GX Eagle AXS 12-speed groupset plus DT Swiss X 1700 wheelset with Vittoria Barzo tires complete the ultimate build.

Technology

Technical Overview

Frameset

Frame:
Twostroke 01 Premium Carbon with Tuned Compliance Concept XC | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:

Suspension

Front Suspension:
RockShox SID SL Select+

Remote Lockout:
OneLoc Sprint Remote

Cockpit

Stem:
BMC MSM 01

Handlebar:
BMC MFB 01 Carbon | 760mm

Seat

Seatpost:
Twostroke 01 Premium Carbon D-Shaped Seatpost

Saddle:
Fizik Antares R7

Brakes

Brake Levers / Calipers:
SRAM Level TLM

Rotors:
SRAM Centerline

Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL

Wheels

Rims:
DT Swiss XR 1700 | 25mm Inner Width

Hubs (F/R):
DT Swiss 350

Tires:
Vittoria Barzo | 2.25"

Additional Information

Tire Clearance:
58mm

ASTM Classification:
Level 3

System Weight Limit:
110kg

Size S M L XL
Rider Height 162-172 170-180 178-188 >188
Reach 422.5 445 465 485
Stack 588 598 608 623
Bar Rise 4 4 4 4
Bar Sweep 8 8 8 8
Bar Width 760 760 760 760
BB Drop 64 64 64 64
Crank Length 170 175 175 175
Fork Length 505 505 505 505
Fork Rake 44 44 44 44
Front Center 696 715 741 767
Head Tube 87 93.5 106 122.5
Head Tube Angle 67 67 67 67
Rear Center 425 425 425 425
Seat Angle 75 75 75 75
Seat Tube 410 440 480 510
Seatpost Length 380 430 430 430
Standover Height 725 730 735 750
Stem Angle -5 -5 -5 -5
Stem Length 50 60 60 70
Top Tube 597 618 638 658
Trail 109 109 109 109
Wheelbase 1112.5 1135 1161 1185
