Name: Teammachine R 01 FIVE
Brand: BMC
SKU: 30008089
Price: 6499.0 EUR
Availability: InStock

Metallic Red / Carbon

The Teammachine R 01 FIVE is an elite platform designed with Red Bull Advanced Technologies that redefines racing.

EUR 6.499,00

SKU: 30008089

Size —

In stock, ready to ship
Inventory on the way

Compatible Parts & Accessories

Check for availability within our Retailer Network

[{"id":56310432137602,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30008089","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 FIVE - 47","public_title":"47","options":["47"],"price":649900,"weight":14,"compare_at_price":649900,"inventory_quantity":13,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534809","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310432170370,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30008090","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 FIVE - 51","public_title":"51","options":["51"],"price":649900,"weight":14,"compare_at_price":649900,"inventory_quantity":50,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534793","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310432203138,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30008091","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 FIVE - 54","public_title":"54","options":["54"],"price":649900,"weight":14,"compare_at_price":649900,"inventory_quantity":50,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534786","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310432235906,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30008092","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 FIVE - 56","public_title":"56","options":["56"],"price":649900,"weight":14,"compare_at_price":649900,"inventory_quantity":50,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534878","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310432268674,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30008093","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 FIVE - 58","public_title":"58","options":["58"],"price":649900,"weight":14,"compare_at_price":649900,"inventory_quantity":35,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534960","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310432301442,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30008094","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 FIVE - 61","public_title":"61","options":["61"],"price":649900,"weight":14,"compare_at_price":649900,"inventory_quantity":11,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534953","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Elite race engineering? The Halo fork? 01 Premium Carbon? The Teammachine R 01 FIVE has it all. Developed in collaboration with Red Bull Advanced Technologies, it’s the fastest road bike to come out of BMC to date and exists to give you the same aerodynamic advantage our pros rely on – every time you ride. Our 01 Premium Carbon layup keeps this frameset exceptionally light and brutally efficient, with stiffness exactly where a racer needs it. Reliable shifting and braking come from Shimano’s 105 Di2 groupset. The ICS 2 stem and HB D4 bars, which form an adjustable, integrated cockpit join the CR 50 Carbon tubeless-ready wheels to complete a system designed to hold speed when it matters most. And then there’s the front end. The wide-stance fork isn’t just fast – it’s unmistakable. By calming turbulence and stabilizing airflow around the wheel, it gives your Teammachine R 01 FIVE an aerodynamic advantage visible from a distance and undeniable on the road.

Technology

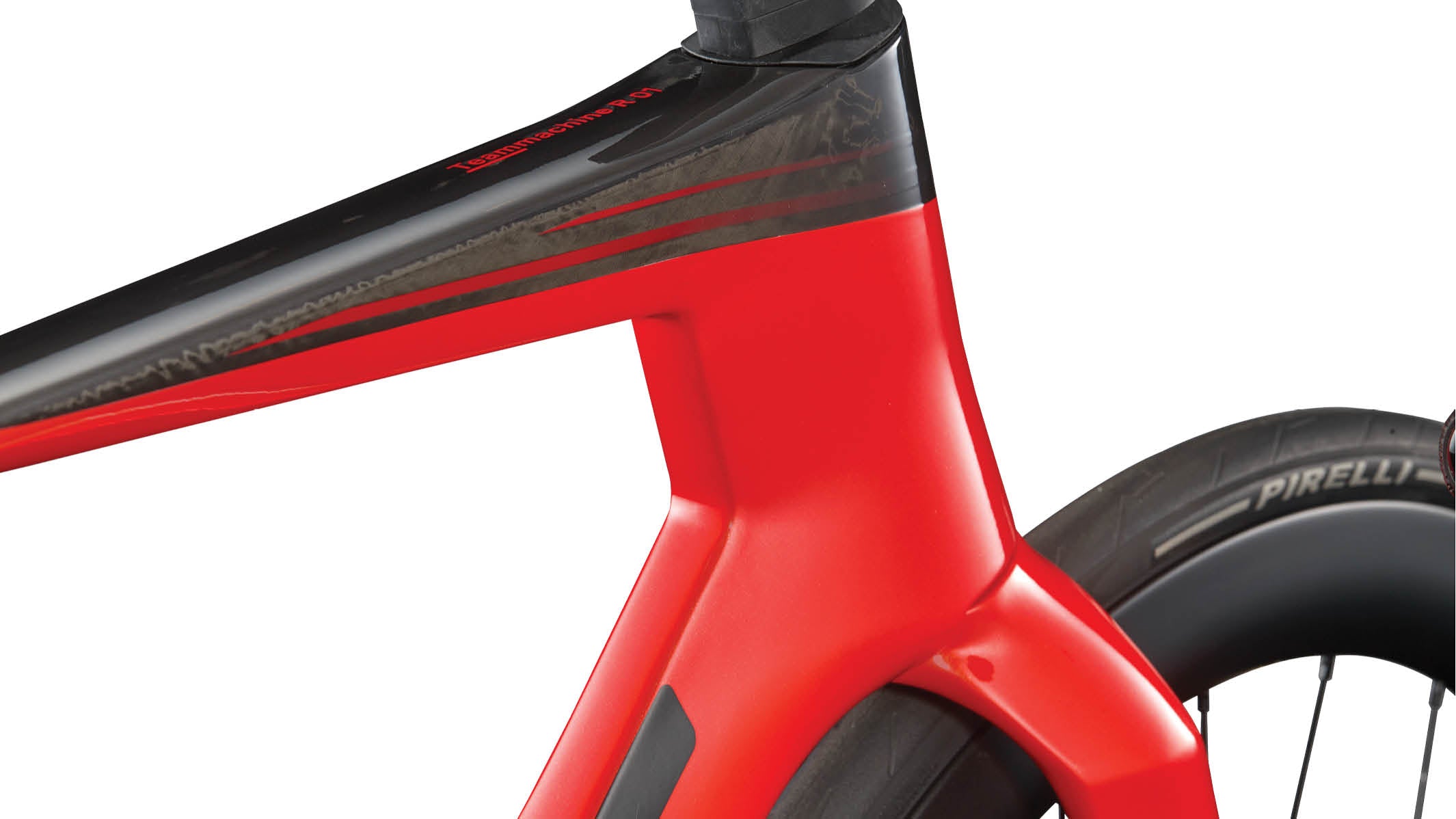

Halo Fork

To create speed, we pushed the fork legs wider, forming a distinctive ultra-wide front end. Halo shutters turbulent air away from the frame, kills aero stall and unlocks clean, usable speed.

ICS Carbon Aero Cockpit

Developed with Tudor Pro Cycling Team, this ICS Aero Cockpit is by racers, for racers: stiffer, more aero, more comfortable, more tunable, and easier to assemble. And yes, it looks good too.

Deep Bottom Bracket Area

We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever developed on a road bike. The reasoning? You get the cleanest air due to the surface area. UCI approved.

All-Aero Seatpost

A seatpost that’s slimmer, deeper, more compliant, and lighter than ever, with a clamp mechanism that’s easier to access and maintain. Also compatible with an integrated number-plate holder – making it the smartest way for race day.

Technical Overview

Frameset

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare

Grips:
BMC Tacky 3mm

Seat

Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Saddle:
Selle Italia SLR Advan | Tubular Steel Rails | 145mm

Drivetrain

Crankset:
SHIMANO 105 (FC-R7100)

Chainrings:
52-36T

Cassette:
SHIMANO (CS-HG710)

Cassette Size:
11-36T

Chain:
SHIMANO CN-M6100

Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)

Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)

Shifters:
SHIMANO 105 Di2 (ST-R7170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)

Brakes

Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)

Rotors:
SHIMANO 105 (RT-CL700)

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CR 50 Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-240A Center Lock

Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories

In the Box:
Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers

Additional Information

Tire Clearance:
30mm measured tire

Weight without Pedals:
8.0kg | Size 54 as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Drop	125	125	125	125	125	125
Bar Reach	80	80	80	80	80	80
Bar Width	390/414	390/414	390/414	390/414	410/434	410/434
BB Drop	69	69	69	69	69	69
Crank Length	165	170	170	170	172.5	172.5
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	184	211
Head Tube Angle	71.5°	71.5°	72.3°	72.3°	72.3°	72.3°
Rear Center	410	410	410	410	410	410
Seat Angle	74°	74°	73.5°	73.5°	73°	73°
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	0	0	10	10	10	10
Standover Height	721	755	781	799	813	836
Stem Angle	-12.5°	-12.5°	-12.5°	-12.5°	-12.5°	-12.5°
Stem Length	80	90	90	100	110	110
Top Tube	515	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030
